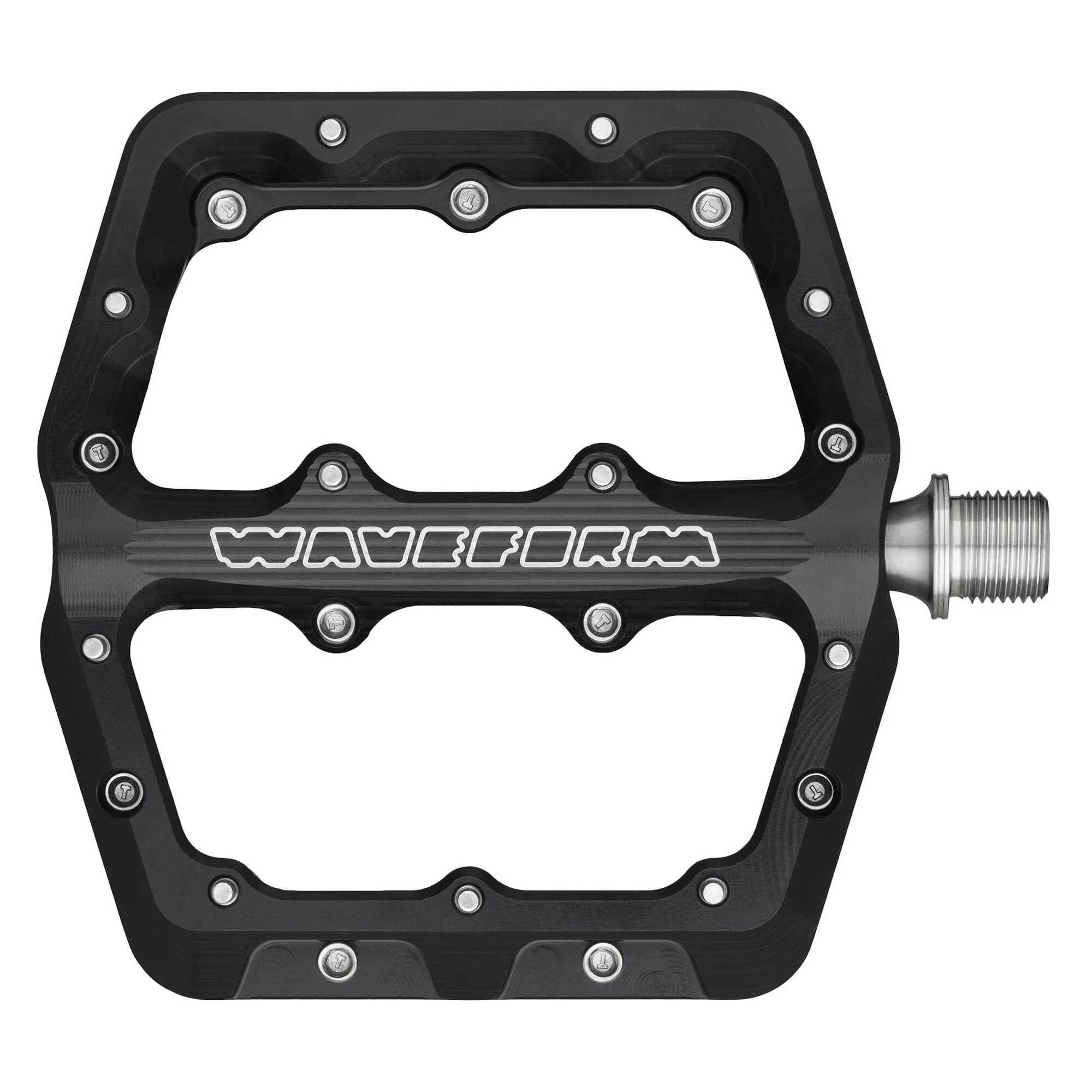

The Wolf Tooth Waveform™ Pedals dial in a concave platform and pin design to give a solid and stable pedal. With tapered leading edges and a low-profile design, they will glance off any trail obstacles you encounter with ease.

Their concave design will keep your feet firmly in place, while the pedals’ slim build, just 14mm thick and 12.5mm at the centre, will ensure they’re kept close to the axle and over the centre of the pedals to stop them moving about through rough terrain, delivering excellent stability and security through a reduced centre of gravity.

The Waveform Pedals are made from strong 6061-T6 aluminium, while the traction pins are made from 304 stainless steel. There are 11 of these 4.5mm long rear loading pins, and together they offer superb shoe hold, locking your feet into the pedals for maximum control. They will stand up to rough use and, in partnership with the slim platform design, will give excellent ground clearance.

Wolf Tooth has gone all out with the Waveform, building three bespoke, high precision, low friction bearings and a light plastic Igus bushing, which will require little maintenance, into them. Wolf Tooth has also designed its own custom radial seal, which will keep the muck out for a longer life and a smooth feel from day one.

Should you need to replace any of your traction pins, the Waveform™ Pedals come with six handy replacements as standard. They’re also fully serviceable using hex keys, with replacement parts easily available through Wolf Tooth’s “Right to Repair” scheme, and they come with a five-year limited warranty for added peace of mind.

Key features:

Perfect for all-mountain use
Available in two sizes
Large at 112mm x 106mm, weight 400g, or small at 105mm x 99mm, weight 380g
Both sizes are 14mm thick, slimming to just 12.5mm in the centre
Platforms made from 6061-T6 aluminium
Dual concavity keeps your feet in place
11 304 stainless steel, rear-loading pins per side, for extra grip
6 spare pins included as standard
Fully serviceable, with ready availability of spare parts
5-year limited warranty

Pedals

Wolf Tooth Waveform Pedals

Wolf Tooth Ripsaw Pedals

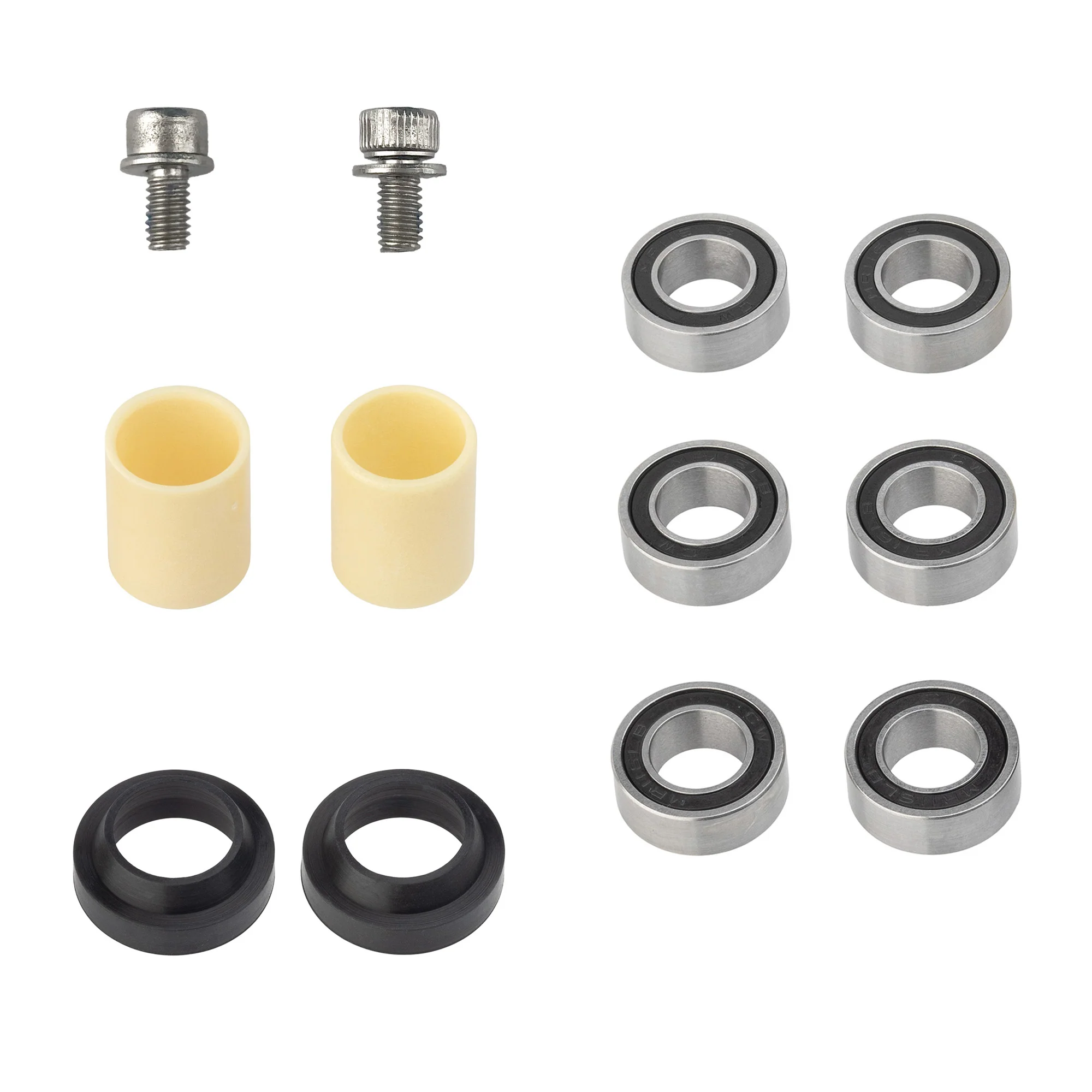

Wolf Tooth Waveform Pedals Refresh Kit
